Lithium Ion Full Electric Pallet Truck (1800kg)

Maximize efficiency and safety in material handling with our PPT18H & EPT18H Electric Pallet Truck, featuring advanced ergonomic design and intuitive operation.


Description

Economical Semi and Electric Pallet Truck (PPT18H & EPT18H Series), engineered with advanced features to enhance efficiency and safety in material handling tasks.

Standard Features:

  • Maintenance-free operation with a brushless drive motor and Lithium battery.
  • Multi-functional ergonomic handle with an LCD screen for battery indication, error code display, and recharge alert.
  • Versatile wheel options (tandem or single PU) cater to diverse operational needs.
  • Smart functionality offers three operation modes: turtle speed, up-right drive, and engineering mode.
  • Integral forks design ensures seamless handling of closed pallets with a single load wheel.
  • Optional protection cover shields electrical components from potential damage.
  • Effortless lifting and lowering of fully loaded pallets with electric operation.
  • Enhanced safety features include an emergency reverse button.
  • Backed by a 5-year warranty on the chassis for long-term peace of mind.

Specification

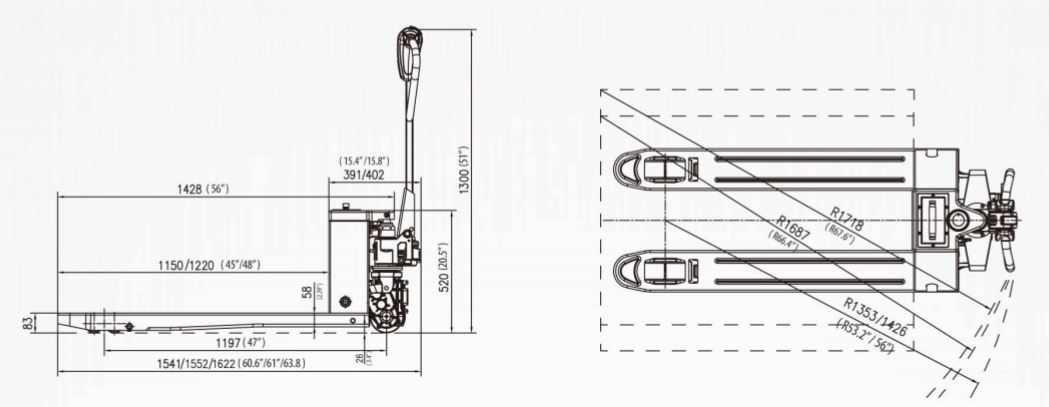

PPT18H EPT18H Series spec

ModelPPT18HPPT18HQEPT15HEPT18H
Characteristics
Capacitykg1800180015001800
Load Centermm600600600600
Standard Overall Fork Widthmm550/685550/685550/685550/685
Fork Lengthmm1150/12201150/12201150/12201150/1220
Overall Lengthmm1552/16221552/16221552/16221552/1622
Overall Height (with Tiller)mm1300130013001300
Rear Body Widthmm550/685550/685550/685550/685
Minimum Turning Radiusmm1353/14261353/14261353/14261353/1426
Performance
Max. Traveling SpeedLadenkm/h3.53.544
Unladenkm/h5555
GradeabilityLaden%5566
Unladen%20202020
TravelingkWDC 0.75 BrushlessDC 0.75 BrushlessDC 0.75 BrushlessDC 0.75 Brushless
LiftingkWHydraulicQUICK LIFTDC 0.5DC 0.5
Battery
VoltageV48484848
Capacity/TypeAh10 Ah Lithium10 Ah Lithium10 Ah Lithium10 Ah Lithium
Brake Type
Travel BrakeRegenerateRegenerateRegenerateRegenerate
BrakeElectromagneticElectromagneticElectromagneticElectromagnetic
Controller
ControllerSTAXXB1501STAXXB1501STAXXB1501STAXXB1501
ModelPPT40HPPT40HQEPT15HEPT18H
Characteristics
Capacitylb4000400033004000
Load Centerin23.623.623.623.6
Standard Overall Fork Widthin21.6/2721.6/2721.6/2721.6/27
Fork Lengthin45/4845/4845/4845/48
Overall Lengthin61/63.861/63.861/63.861/63.8
Overall Height (with Tiller)in51515151
Rear Body Widthin21.6/2721.6/2721.6/2721.6/27
Minimum Turning Radiusin53.2/5653.2/5653.2/5653.2/56
Performance
Max. Traveling SpeedLadenmph2.22.22.52.5
Unladenmph3.13.13.13.1
GradeabilityLaden%5566
Unladen%20202020
TravelingkWDC 0.75 BrushlessDC 0.75 BrushlessDC 0.75 BrushlessDC 0.75 Brushless
LiftingkWHydraulicQUICK LIFTDC 0.5DC 0.5
Battery
VoltageV48484848
Capacity/TypeAh10 Ah Lithium10 Ah Lithium10 Ah Lithium10 Ah Lithium
Brake Type
Travel BrakeRegenerateRegenerateRegenerateRegenerate
BrakeElectromagneticElectromagneticElectromagneticElectromagnetic
Controller
ControllerSTAXXB1501STAXXB1501STAXXB1501STAXXB1501
