Rough Terrain Manual Hand Pallet Truck (1000kg / 1250kg)

Navigate rough terrain effortlessly with our RP Series Pallet Truck, engineered for durability and performance in challenging environments.


Description

Rough Terrain (RP Series) Hand Pallet Truck, engineered for rugged performance in demanding environments.

Standard Features:

  • Specifically designed for rough terrain applications such as construction sites, builder’s yards, and gardens.
  • Equipped with large pneumatic wheels and adjustable straddle forks for use on uneven ground.
  • Powder-coated heavy-duty frame ensures durability.
  • Compatible with both open and closed pallets.
  • Includes built-in overload valve for added protection.
  • Utilizes sealed hydraulic pump with German technology for reliability.
  • Reinforced design for maximum strength and durability.
  • Features speed-controllable load release valve and ergonomic handle design.
  • Maintenance-free, oil-free bushings enhance reliability and reduce operating force.
  • Capable of handling loads up to 1.0 tonne.

For detailed specifications, please feel free to contact us.

Specification

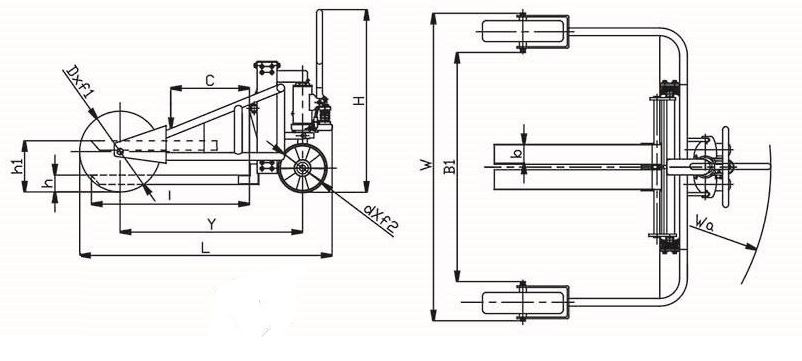

Rough Terrain (RP Series) spec

ModelRP1000ARP1250A
Rated Capacity(kg)10001250
Max./Min. Fork Heighth1/h (mm)240/70240/70
Fork Lengthl (mm)800800 (860)
Load CenterC (mm)400400 9430)
Adjustable Fork Width(mm)216-680256-680
Individual Fork Widthb (mm)100120
Distance Inside the Front WheelB1 (mm)12301230
Axle Distance Between Front Wheel and Rear Steering WheelY (mm)973973
Front Load WheelDia. x W (mm)⌀568x145⌀568x145
Rear Load WheelDia. x W (mm)⌀250⌀250
Turn RadiusWa (mm)15001500
Overall SizeLxWxH (mm)1406x1670x12801406x1670x1280
Net Weight(kg)210238
