Full Electric Pallet Truck (5 Ton)

Navigate tight spaces with ease using our TK Series Powered Pallet Truck, featuring innovative design and European technology for optimal maneuverability.

Description

Powered Pallet Truck – TK Series, engineered with cutting-edge technology to enhance maneuverability and efficiency in tight spaces.

Standard Features:

  • Effortlessly maneuver loads up ramps and dock boards with ease.
  • Compact design, coupled with innovative technology, makes it perfect for navigating narrow aisles, boasting the shortest head length in the market for optimal maneuverability.
  • Smooth stepless speed control powered by European technology.
  • Equipped with a powerful traction battery and maintenance-free AC drive motor for reliable performance.
  • Drive unit features an electromagnetic brake for enhanced safety.
  • Complies with EN1726 and EN1175-1 standards for quality assurance.

Specification

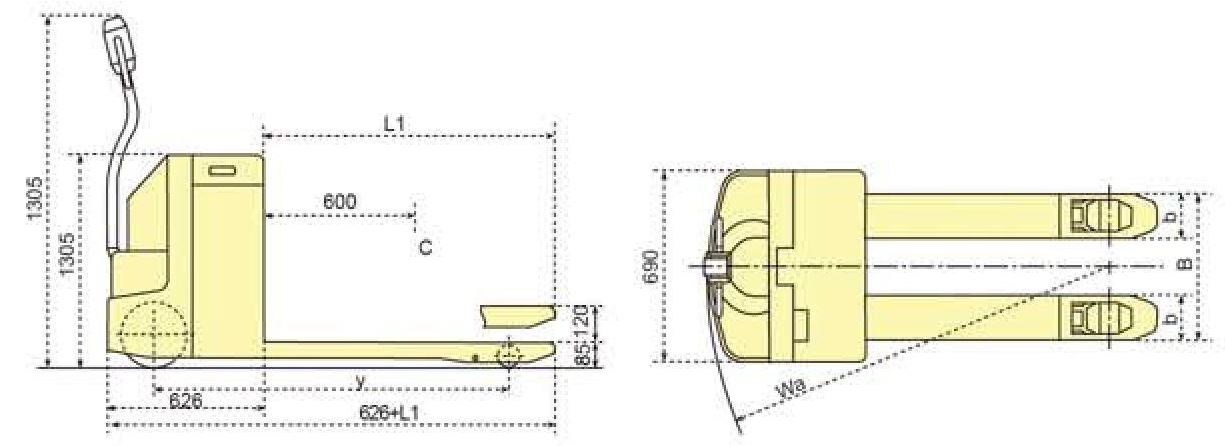

TK Series spec

ModelTK20S
ModelTK20S AC
Typewith Platform
Capacity (kg)2000
Load Center C (mm)600
Max. Fork Height H (mm)205
Min. Fork Height h (mm)85
Fork Length L1 (mm)1150
Individual Fork Width b (mm)160
Wheel Base y (mm)1406
Turning Radius Wa (mm)1946
Traveling Speed with/without Load (km/h)3.6/5.4
Lifting Speed with/without Load (mm/s)22/32
Drive Wheel1200W, ⌀250mm (DC)
Drive Wheel1200W, ⌀250mm (AC)
Power Unit (lifting motor) (W/V)800/24
Traction Battery24V/210Ah, 185kg
Battery Charger25A/24V
Overall Dimension LxWxH (mm)2125x690x1305
Fork Overall Width B (mm)530
Net Weight (kg)338
TillerO (Option)
