Single Shaft Plain Trolley

Single Shaft Plain Trolley

The Single Shaft Plain Trolley offers a lightweight yet durable solution for material handling on monorail systems. Featuring precision ball bearing wheels and quick adjustment capabilities, it ensures smooth and stable operation. With a robust enamel paint finish and compliance with AS/NZ/1418.2 standards, this trolley is built for reliability and long-term use.

Category:

Enquiry about Single Shaft Plain Trolley

Enter the security code shown above

Description

The Single Shaft Plain Trolley is an efficient and lightweight solution for smooth and stable material handling on monorails. Engineered for durability and versatility, this trolley ensures quick adjustment, robust performance, and long-lasting protection for industrial applications.

Key Features

  • Lightweight yet robust construction for easy handling and stability.
  • Super-quick adjustment to fit any monorail system.
  • Durable baked enamel paint for enhanced protection against wear and corrosion.
  • Precision ball bearing trolley wheels for smooth operation.
  • Complies with AS/NZ/1418.2 standards for safety and reliability.

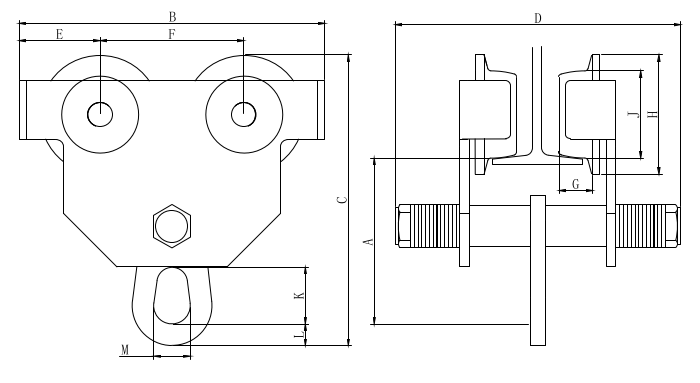

Specifications

ModelRated Load (ton)Test Load (ton)I-Beam Recommended (mm)ABCDEFGHJKLMWeight (kg)
ATP-S-0.5T0.50.7568-152108200190240539418.578573714245.8
ATP-S-1.0T1.01.580-210115238211315591202490664016299.9
ATP-S-2.0T2.03.080-21013027423633069136261057544173414.3
ATP-S-3.0T3.04.588-25016431429537082150331309660173423.2
ATP-S-5.0T5.07.5100-250177364334395971693815011265224034.5
