Double Shaft Geared Trolley

The Double Shaft Geared Trolley is a durable and versatile solution for precise load handling, designed for industrial use. Its double shaft design ensures stable movement across various profiles, including flat and bevel flanges, while the adjustable lower flange feature accommodates beams up to 3 meters. Perfect for heavy-duty applications, it offers smooth operation with the option for extended hand chains.


Description

The Double Shaft Geared Trolley offers precise and stable movement for material handling across various industrial applications. Designed with double shafts for added stability, it accommodates different profiles, including flat and bevel flanges, and ensures smooth operation even under demanding loads. This trolley is continuously adjustable for lower flange applications on beam heights up to 3 meters, with the option for extended hand chains.

Standard Features:

  • Double shaft design for enhanced stability.
  • Smooth and reliable load handling for various profiles, including flat and bevel flanges.
  • Continuously adjustable lower flange geared trolley, ideal for beams up to 3m in height.
  • Optional extended hand chain available at an additional cost.

SEO Keywords: Double shaft geared trolley, adjustable trolley for beam

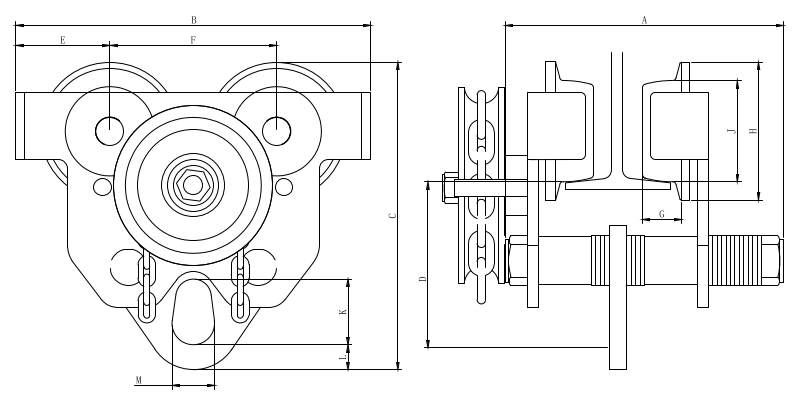

Specifications

ModelRated Load (ton)Test Load (ton)I-Beam Recommended (mm)ABCDEFGHJKLMWeight (kg)
ATG-D-0.5T0.50.7550-152240200190109539418.5785737142411.0
ATG-D-1.0T1.01.564-2033102382111155912024906640162814.5
ATG-D-2.0T2.03.088-20332027023613069136261057544173420.0
ATG-D-3.0T3.04.5100-30543532029516482150331309660173435.0
ATG-D-5.0T5.07.5114-305450370334177971693815011265224051.0
ATG-D-10.0T10.015.0124-30546246046023713019855189150902757115
ATG-D-20.0T20.030.0136-305512565495240148268552251751105680188
ATG-D-30.0T30.045.0175-305532625564258164296602551961257690230
ATG-D-50.0T50.075.0175-305532625*2954258164296602551961257690610
