Series Chain Block – HSZ-A619

Series Chain Block – HSZ-A619

The HSZ-A619 Series Chain Block is a heavy-duty manual hoist designed for industrial lifting applications, meeting EN13157 standards for safety and performance. Built with a high-strength steel frame and alloy steel grade 80 load chain, it ensures durability and efficiency with spur gear technology that reduces operator effort. Featuring double pawls, drop-forged hooks, and optional overload protection, this manual chain hoist is ideal for construction, maintenance, and rigging tasks.

Category:
BST

Enquiry about Series Chain Block – HSZ-A619

Enter the security code shown above

Description

The HSZ-A619 Series Chain Block is a high-performance manual hoist designed for lifting and rigging applications in construction, maintenance, and industrial settings. Built with a high-strength steel frame and durable gear case, it ensures long-lasting performance and reliability. Engineered to meet EN13157 standards, this chain block features spur gear efficiency, double pawls, and guide rollers for enhanced safety and smooth operation.

Standard Features:

✔ Designed in accordance with EN13157 standard
✔ High-strength steel frame and gear case for durability in rugged conditions
✔ Spur gear efficiency reduces operator effort
✔ Double pawl and double guide rollers enhance performance and safety
✔ Drop-forged, wide-throat hooks bend slowly to warn of overloads
✔ Alloy steel grade 80 load chain, compliant with ISO3077 standard

Optional Features:

✔ Overload protection system
✔ Caged ball bearings on load shelves
✔ Cast safety latches
✔ Thrust bearings in the bottom hook assembly
✔ EN818-7 compliant alloy steel load chain
✔ Special surface treatment for increased durability

Specifications

ModelZ005-A619Z010A619Z015-A619Z020-A619Z030-A619Z050-A619Z075-A619Z100-A619Z200-A619Z300-A619Z500-A619
Capacity (tons)0.511.52357.510203050
Load Chain (mm)6X186X188x248x248x2410X3010X3010X3010X3010X3010X30
Hand Chain (mm)5X25
Strands of Load Chain1111223481222
Strands Lift (m)33333335555
Moving Distance of Load Wheel with One Meter Lifting (m)33.341.555.672.6111.2163.4245.1326.8326.8X2490.2X2878.7X2
Effort Required to Lift Rated Load (N)200320360365385435435(44.3)435435X2435X2435X2
Running Test Load (KN)6.1312.2518.3824.536.7561.2591.9122.5245367.5612.5

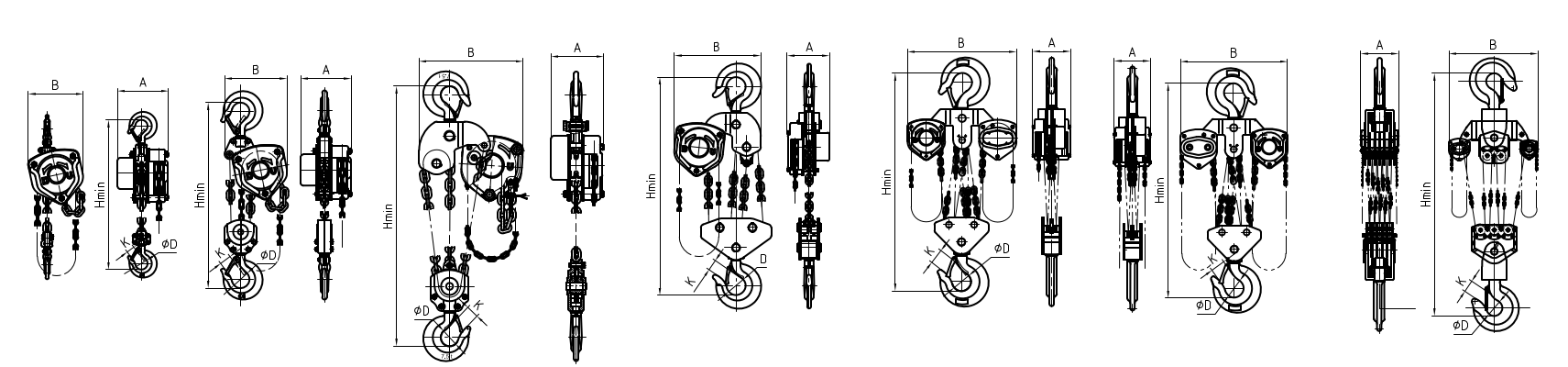

Dimensions, A (mm)137.5146.5170170170190.4190190209312496
Dimensions, B (mm)137162183194220288377384625691958
Dimensions, Hmin (mm)27034039941951262576874389013802578
Dimensions, D (mm)3440455055656485110110170
Dimensions, K (mm)21263030384446588181125
Extra weight per metre of extra lift (kg)1.61.62.22.23.65.27.59.51927.749.4
Net weight (kg)9.111.215.91824.338.761.696.6200.8274.61190
