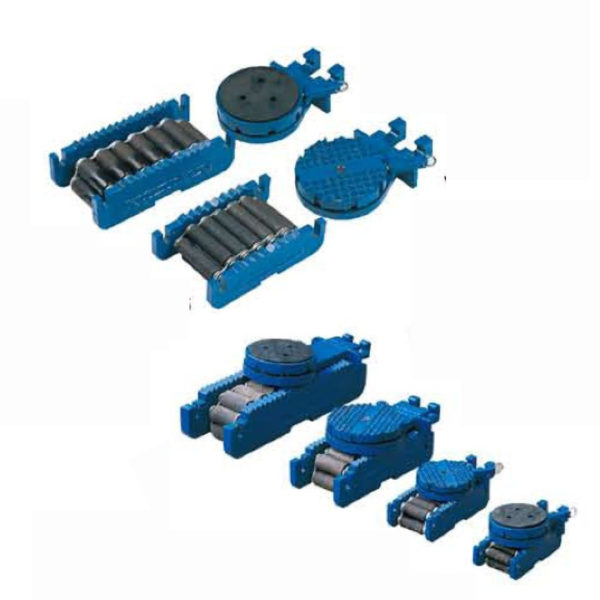

Roller Skates (VB / VD / VP series)

Roller Skates (VB / VD / VP series)

The Roller Skates (VB / VD / VP Series) are heavy-duty load moving skates designed for easy maneuvering of machinery and heavy loads across various surfaces. Featuring low-profile rollers and a swivel attachment, these skates provide superior turning and positioning capabilities. With a load capacity of up to 65 tonnes, they are ideal for industrial applications requiring high precision and reliability.

Category: Tag:

Enquiry about Roller Skates (VB / VD / VP series)

Enter the security code shown above

Description

The Roller Skates (VB / VD / VP Series) are designed for efficiently moving heavy loads across a variety of operating conditions. These industrial-grade skates feature low-profile rollers and a swivel attachment, allowing for easy turning and precise positioning of machinery and equipment. Available in multiple swivel top types – VD with diamond tops and VP with rubber pad tops – these roller skates offer up to 65 tonnes of load capacity, making them ideal for heavy-duty applications in tight spaces.

Standard Features:

  • Load moving skates (also known as machinery skates, industrial roller skates, machinery roller skates)
  • Low profile rollers for versatility across various operating conditions
  • Swivel attachment for enhanced turning and positioning capabilities
  • Available in two types of swivel tops: VD (diamond top) and VP (rubber pad top)
  • Up to 65 tonnes load capacity

Specification

ModelVB3.75VB5VB10VB12VB25VB65
Capacity (tonne)3.75510122565
Size of Roller ⌀xL (mm)24x6224x8430x7030x8041x8949x92
Number of Roller (pcs)131314141418
Dimension, LxWxH (mm)219x117x70219x140x70264x133x86264x143x86397x171x121584x191x143
Net Weight (kg)7913143671
ModelVD3.75VD5VD10VD12.5VD25VD65
ModelVP3.75VP5VP10VP12.5VP25VP65
Height (combined with roller) (pcs)113113129129181203
132132148148189222
Length (mm)283283324324457641
Width (mm)149149152152203203
Net Weight (kg)66771021
