Permanent Magnetic Lifter

The Permanent Magnetic Lifter is a power-free lifting solution designed for safe and efficient material handling of steel plates, round steel, and ferrous materials. Built with Nd-Fe-B permanent magnets, it delivers high lifting capacity, ensuring secure and reliable operation with zero remanence. Its V-groove design allows for versatile use in industrial, manufacturing, and construction applications.


Description

Permanent Magnetic Lifter – a power-free lifting solution designed for safe, efficient, and high-performance material handling. Built with Nd-Fe-B permanent magnets, it delivers exceptional lifting capacity while ensuring zero remanence for secure operations. Ideal for lifting steel plates, round steel, and ferrous materials, this lifter offers professional-grade durability and reliability across industrial, manufacturing, and construction applications.

Standard Features:

No power operation – reliable and energy-efficient
Professional modeling design for superior performance
Lifting capacity up to three times the rated load for added safety
V-groove design for handling both round steel and flat plates
Optimized magnetic circuit design with zero remanence
Nd-Fe-B material ensures permanent magnetism and high

Specifications

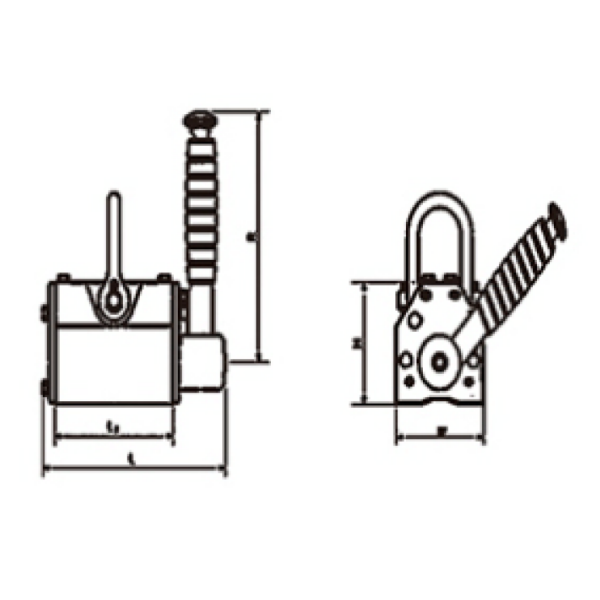

ModelsCapacity (kg)MAX Breakaway Force (kg)Dimensions/mmNet Weight (kg)Gross Weight (kg)Package Size (LxWxH)
LL1WHR(cm)
PML-1001003501308462681903423x16x14
PML-200200700199153.562731905628x16x16
PML-3003001050226178.584952209.310.529x19x19
PML-4004001400226178.5849522010.51227x18x19
PML-6006002100285240.512011524822.752537x20x23
PML-100010003500320256.5153138280373940x23x25
PML-200020007000500435153165370909458x28x29
PML-300030001050062052021521558022623470x38x45
PML-50005000175001000930215215855352365116x36x66
