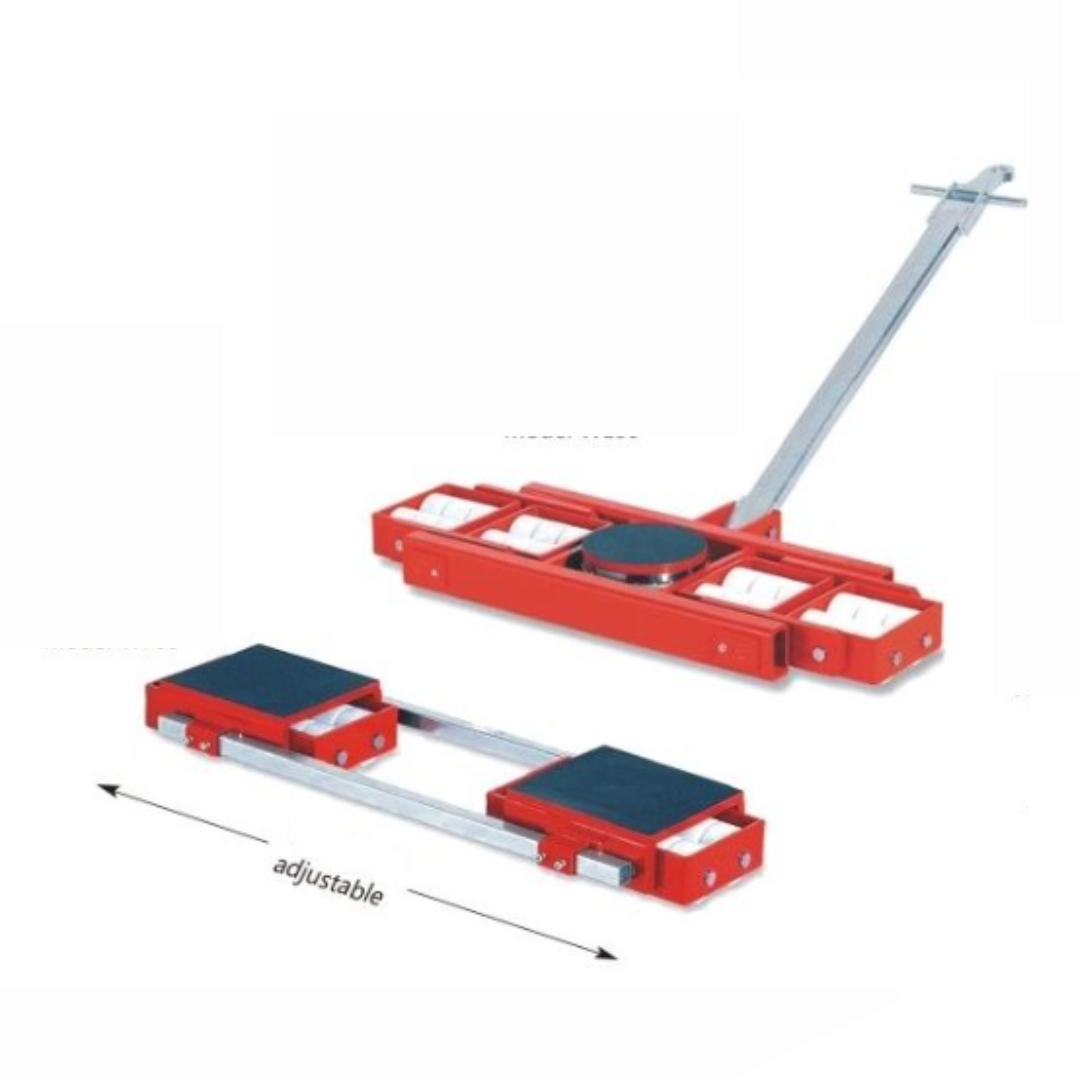

Load Moving Roller Skate Up to 120 ton

The Load Moving Roller Skate is a heavy-duty solution designed for transporting industrial machinery and large equipment with ease, supporting loads up to 120 tons. With a steerable skate design, low rolling resistance, and robust construction, these skates ensure safe and efficient movement of heavy loads in industrial environments. Ideal for any machinery relocation needs, these roller skates provide reliable, smooth, and stable transport.


Description

Industrial-grade Load Moving Roller Skates (also known as machinery skates, industrial roller skates, and roller skids) are designed to efficiently transport heavy machinery and equipment up to 120 tons. With a steerable skate design and low rolling resistance, these heavy-duty skates ensure smooth, safe, and reliable mobility in industrial settings.

Key Features:

  • High Load Capacity: Supports up to 120 tons for moving heavy machinery.
  • Steerable Design: Enables precise maneuverability for complex operations.
  • Heavy-Duty Construction: Ensures durability and reliable load-bearing.
  • Low Rolling Resistance: Smooth operation with minimal force required.
  • Solid Structure: Built to withstand intense use in industrial environments.
  • Customer 60tons machine with Herculift Skate in action, click here to view.

Ideal for any setting requiring efficient and safe load movement, these skates provide top performance in heavy-duty applications.





Specification

Stock No.210100301210100302210100601210100602
ModelWF 3WL 3WF 6WL 6
Load Capacity3366
Total Load Capacity (T)661212
Installation height (t)110110110110
Rollers Dimensions (mm)⌀ 85x85⌀ 85x85⌀ 85x85⌀ 85x85
Rollers Quantity4488
Supporting Surface (mm)150x150⌀ 170200x200⌀ 170
Spacer rod, adjustable300 ~ 1000640 ~ 1030
Steering Rod (mm)950/1080
Steering Angle/±90°/±90°
Overall Dimensions (mm)/270x320/610x520
Tare Weight (kg)15123041
Stock No.210101801210101802
ModelWF18WL18
Load Capacity1818
Total Load Capacity (T)3636
Installation height (t)110110
Rollers Dimensions (mm)⌀ 85x85⌀ 85x85
Rollers Quantity1616
Supporting Surface (mm)200X407⌀ 170
Spacer rod, adjustable1014~1430/
Steering Rod (mm)/9080
Steering Angle/±90°
Overall Dimensions (mm)/1030X620
Tare Weight (kg)5582
Stock No.210102001210102002
ModelWF20WL20
Load Capacity2020
Total Load Capacity (T)4040
Installation height (t)180180
Rollers Dimensions (mm)⌀ 140x85⌀ 140x85
Rollers Quantity88
Supporting Surface (mm)280x220⌀ 250
Spacer rod, adjustable440 ~ 1600/
Steering Rod (mm)/1620
Steering Angle/±90°
Overall Dimensions (mm)/747x730
Tare Weight (kg)81170
Stock No.210103001210103002
ModelWF30WL30
Load Capacity3030
Total Load Capacity (T)6060
Installation height (t)180180
Rollers Dimensions (mm)⌀ 140x85⌀ 140x85
Rollers Quantity1212
Supporting Surface (mm)288X300⌀ 250
Spacer rod, adjustable650~1830/
Steering Rod (mm)/1620
Steering Angle/±90°
Overall Dimensions (mm)/810X952
Tare Weight (kg)128214
Stock No.210104001210104002
ModelWF40WL40
Load Capacity4040
Total Load Capacity (T)8080
Installation height (t)180180
Rollers Dimensions (mm)⌀ 140x85⌀ 140x85
Rollers Quantity1616
Supporting Surface (mm)370X370⌀ 250
Spacer rod, adjustable820~1760/
Steering Rod (mm)/1620
Steering Angle/±90°
Overall Dimensions (mm)/1204x855
Tare Weight (kg)210246
Stock No.210106001210106002
ModelWF60WL60
Load Capacity6060
Total Load Capacity (T)120120
Installation height (t)180180
Rollers Dimensions (mm)⌀ 140x85⌀ 140x85
Rollers Quantity2424
Supporting Surface (mm)390x440⌀ 250
Spacer rod, adjustable1100~2730/
Steering Rod (mm)/1620
Steering Angle/±90°
Overall Dimensions (mm)/835x1690
Tare Weight (kg)290435
