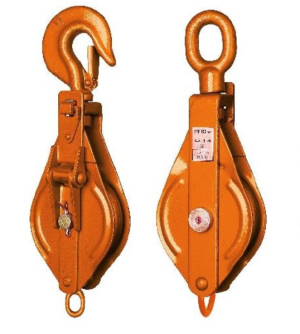

Heavy Duty Snatch Blocks

BST Heavy Duty Snatch Blocks are designed for high-performance towing, lifting, and rigging applications, offering exceptional durability and efficiency. The quick pull pin allows for easy cable loading, reducing downtime and improving workflow. Built to withstand heavy loads and harsh environments, these snatch blocks enhance winch performance and safety, making them ideal for industrial, off-road, and recovery operations.


Description

BST Heavy Duty Snatch Blocks are designed for rugged towing, lifting, and rigging applications, offering superior durability and strength. Built to withstand heavy loads and tough environments, these high-performance pulley blocks help reduce strain on winches and enhance lifting efficiency. The quick pull pin allows for easy cable loading, making them a versatile and essential tool for industrial and off-road recovery operations.

Standard Features:

Heavy-duty construction for high load capacity
Quick pull pin for fast and easy cable installation
Reduces strain on winches for improved performance
Versatile design suitable for towing, lifting, and rigging applications

For specifications and customization options, contact us today.

Specifications

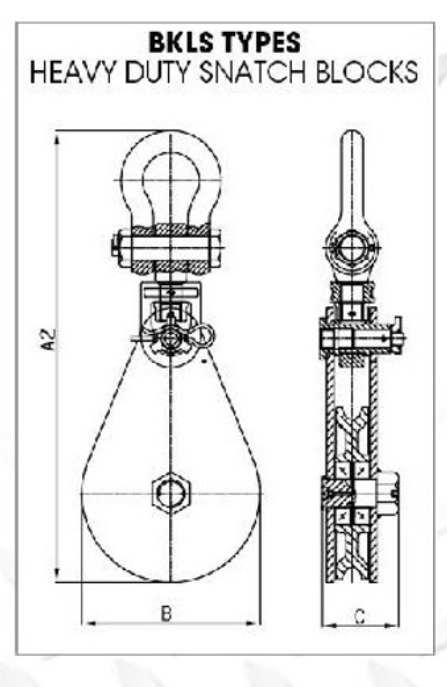

Type ShackleS.W.P (t)Sheave Diameter (mm)A2 (mm)B (mm)C (mm)For Wire Diameter (mm)Net Weight (kg)
BKLS3"X127528682707-93.8
BKLS4(1/2)"X141153451207010-126.2
BKLS6"X141503991607016-188.3
BKLS6"X181504751609320-2214.1
BKLS8"X182005282109320-2218.7
BKLS8"X11520066321010222-2433
BKLS10"X11025067926011524-2634.7
BKLS10"X11225067926011524-2634.7
BKLS12"X11230076731013324-2654
BKLS12"X11530078831013326-2855
BKLS14"X12235595236514028-32109
BKLS16"X122400101941514028-32118
BKLS16"X130400112641515532-35164
BKLS20"X130500125651416232-35208
BKLS24"X150600152562524046-50418
