Dum Carrier / Rotator 365kg

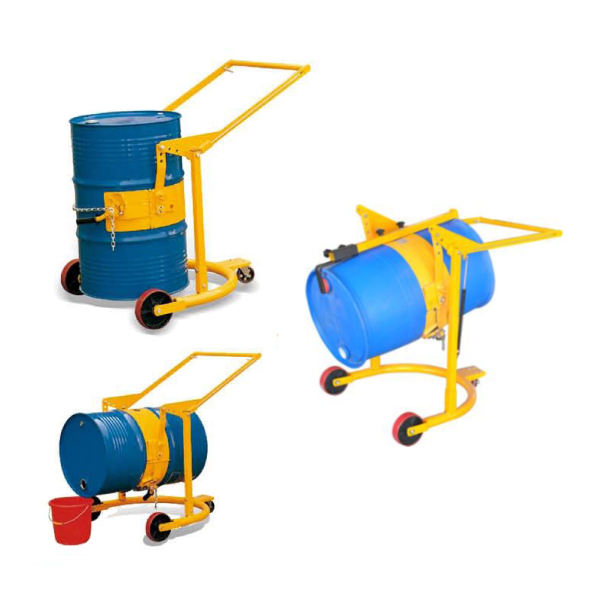

The Dum Carrier/Rotator is a versatile and high-quality drum handling tool designed to raise, transport, rotate, and tilt fully loaded drums with ease. Equipped with dual fingertip-operated locks, it ensures secure positioning for both spill prevention and efficient draining. Its durable construction and smooth maneuverability make it an essential piece of equipment for industrial drum management.


Description

The Dum Carrier/Rotator is an exceptional drum handling tool designed for maximum versatility and ease of use. It raises, transports, rotates, tilts, and drains fully loaded drums, providing comprehensive control for various applications. With dual fingertip-operated locks, you can securely lock the drum in a vertical position to prevent spills or in a horizontal position for draining. The carrier allows for end-over-end rotation to agitate contents or manual tipping at any angle. It’s easy to maneuver with 8″ polyurethane roller bearing wheels and a 4″ swivel caster, and it ships partly disassembled for cost-effective delivery.

Standard Features:

  • High-quality drum handling for industrial use
  • Raises, transports, rotates, tilts, and drains fully loaded drums
  • Dual fingertip-operated locks for secure positioning
  • Locks drum vertically to prevent spills or horizontally for draining
  • Allows end-over-end rotation to agitate contents
  • Easy to steer and move with 8″ polyurethane roller bearing wheels and 4″ swivel caster
  • Shipped partly disassembled to reduce freight costs

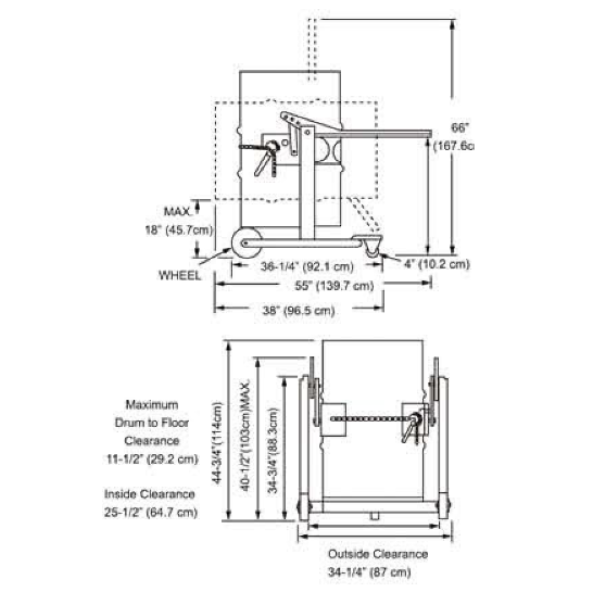

Specification

ModelHD80A
Capacity (kg/lbs)364 / 800, Steel Drum
Drum Size257mm (22.5") Diameter, 210 Litres (55 gallon), 36" High (915.5mm)
Net Weight (kg/lbs)50 / 110

ModelHD80B
Max Capacity (kg)365
Drum Size (mm)30-55 Gallon Steel Drum / 210L Plastic Drum
Max Lifting Height (mm)200
Max Pouring Height (mm)360
Wheel Size (mm)⌀ 180 / ⌀ 75
Overall Size (L x W x H) (mm)940x895x1050
Net Weight (kg)50
