Crane Fork (1000kg-5000kg)

Simplify crane operations with our CY Series Crane Fork, featuring effortless handling and adjustable functionality.

Category: Tag:

Description

Crane Fork (CY Series) Hand Pallet Truck, engineered for seamless and efficient material handling in crane operations.

Standard Features:

  • Eliminates the need for slings or chains during operation.
  • Allows crane operators to remain in the cab or crane while loading and unloading.
  • Forks maintain a horizontal position under load.
  • Adjustable fork width and height for versatile handling.

Specification

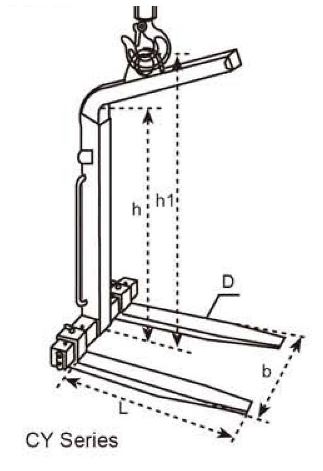

Crane Fork (CY Series) spec

ModelCY10CY20CY30CY50
Work Load Limit WLL (tonne)1235
Adjustable Fork Width b (mm)350-900400-900450-900530-1000
Hook Height h1 (mm)1420-19201655-23551720-24201710-2410
Effective Height h (mm)1100-16001300-20001300-20001300-2000
Fork Length L (mm)1000100010001000
Fork Cross D (mm)100X30120x40120x50150x60
Overall Size LxWxH (mm)1120X920X15301140x920x17751140x920x18501160x1020x1850
Net Weight (kg)140220280380
