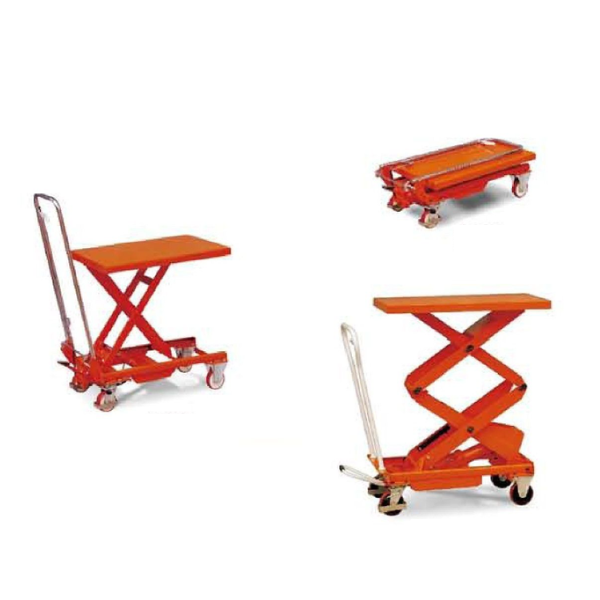

Manual Scissors Lift Table Up to 1000kg

Heavy-duty mobile lift table designed for enhanced safety and efficiency in industrial applications.

Description

Engineered for robust performance, the BS Series Mobile Lift Table is designed to enhance operational efficiency and safety in various applications.

Standard Features:

For detailed specifications, please do not hesitate to contact us.

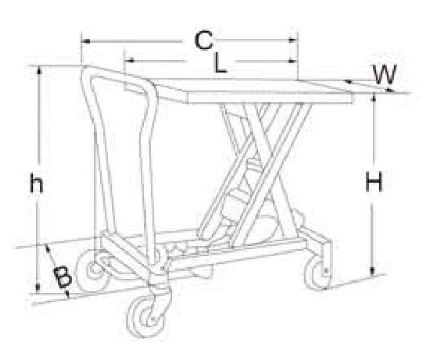

Model		BS15	BS25	BS50	BS75	BS100	BS15D	BS30D	BS50D	BS80D
Capacity	KG	150	250	500	750	1000	150	300	500	800
Table Size	LxW (mm)	700x450	830x500	1010x520	1010x520	1010x520	830x500	1010x520	1010x520	1010x520
Table Height	H (Min./Max.) (mm)	265/755	330/910	435/1000	442/1000	445/950	435/1435	440/1585	440/1580	470/1410
Handle Height	h (mm)	1015	1085	1100	1100	1100	1085	1100	1100	1100
Wheel Dia.	(mm)	⌀100	⌀125	⌀150	⌀150	⌀150	⌀150	⌀150	⌀150	⌀150
Overall Size	BxC (mm)	450x930	500x1065	520x1275	520x1275	500x1065	500x1065	520x1275	520x1275	520x1275
Foot Pedal to Max. height		20	28	55	65	85	30	77	85	95
Net Weight	(kg)	41	78	118	120	137	90	150	168	165
